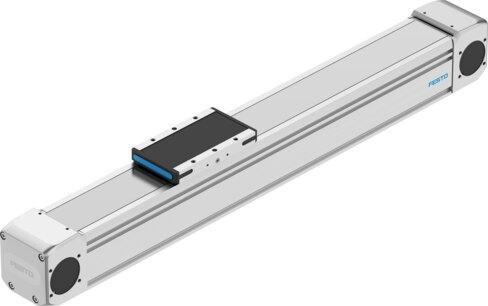

Reference imageConfirm configuration by manufacturer part number.
Festo
8192357
Toothed belt axis ELGD-TB-KF-80-600-0H-PU2
The Festo 8192357 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 42.97 mm drive pinion effective diameter, and a size 80 structural design. Equipped with a recirculating ball bearing guide, this unit delivers a 600 mm working stroke, a maximum speed of 3 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.04 mm with a 100% duty cycle. It operates with stepper or servo motors, incorporates an incremental linear potentiometer measuring principle, and provides position sensing for inductive sensors across any mounting position. The assembly complies with VDMA24364-C1-L LABS conformity, meets ISO 14644-1 Class 6 cleanroom standards (or Class 4 with a vacuum insert), and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values under an IP40 degree of protection and a -20 °C to 60 °C storage temperature range. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192357
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192357.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 42.97 mm
- Working stroke
- 600 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 50 m/s²
- Max. speed
- 3 m/s
- Repetition accuracy
- ±0.04 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.00025 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 1213000 mm⁴
- 2nd moment of area Iz
- 2052000 mm⁴
- Max. driving torque
- 17.2 Nm
- Max. force Fy
- 4200 N
- Max. force Fz
- 4200 N
- Max. force Fy total axis
- 2800 N
