Festo
8192364

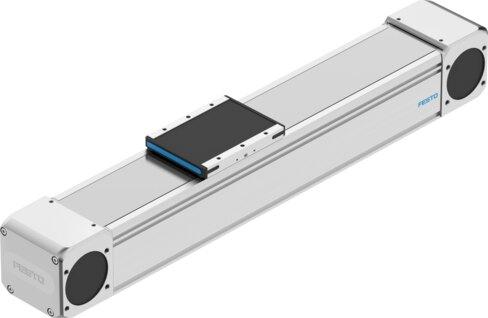

Toothed belt axis ELGD-TB-KF-120-200-0H-PU2
The Festo 8192364 is an electromechanical linear axis with a toothed belt, featuring a size of 120, a working stroke of 200 mm, and a drive pinion effective diameter of 55.7 mm. Equipped with a recirculating ball bearing guide, this unit accommodates stepper or servo motors, achieves a max speed of 3 m/s, delivers a repetition accuracy of ±0.04 mm, and maintains a 100% duty cycle within an IP40 degree of protection. It meets VDMA24364-C1-L LABS conformity, is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a), and complies with ISO 14644-1 cleanroom standards for versatile mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192364
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192364.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 55.7 mm
- Working stroke
- 200 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 50 m/s²
- Max. speed
- 3 m/s
- Repetition accuracy
- ±0.04 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.001 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 3550000 mm⁴
- 2nd moment of area Iz
- 8985000 mm⁴
- Max. driving torque
- 36.2 Nm
- Max. force Fy
- 4300 N
- Max. force Fz
- 4300 N
- Max. force Fy total axis
- 2957 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8192364. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
