Festo
8192366

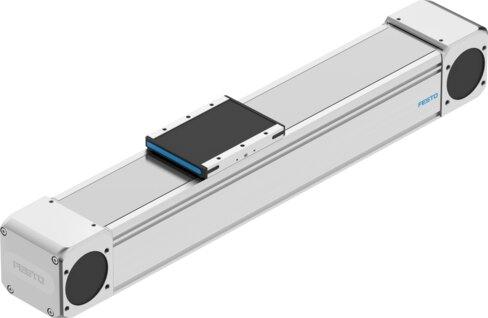

Toothed belt axis ELGD-TB-KF-120-500-0H-PU2
The Festo 8192366 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 55.7 mm drive pinion effective diameter, and a 500 mm working stroke of size 120. Equipped with a recirculating ball bearing guide, this unit operates with a maximum speed of 3 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.04 mm at a 100% duty cycle. It supports stepper or servo motors, incorporates an incremental linear potentiometer, and provides position sensing for inductive sensors within an IP40-rated assembly that complies with VDMA24364-C1-L LABS conformity. Designed for cleanroom use according to ISO 14644-1 (Class 6 or Class 4 with vacuum insert) and suitable for Li-ion battery production with reduced Cu/Zn/Ni values, it functions in any mounting position across a storage temperature range of -20 °C to 60 °C with 0 mm stroke reserve. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192366
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192366.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 55.7 mm
- Working stroke
- 500 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 50 m/s²
- Max. speed
- 3 m/s
- Repetition accuracy
- ±0.04 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.001 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 3550000 mm⁴
- 2nd moment of area Iz
- 8985000 mm⁴
- Max. driving torque
- 36.2 Nm
- Max. force Fy
- 4300 N
- Max. force Fz
- 4300 N
- Max. force Fy total axis
- 2957 N
