Festo
8192369

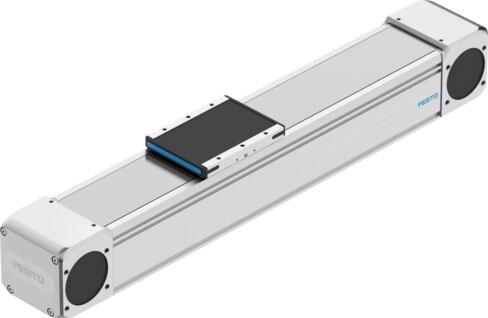

Toothed belt axis ELGD-TB-KF-120-1000-0H-PU2
The Festo 8192369 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 120 size, and a 1000 mm working stroke driven by a 55.7 mm effective diameter pinion. Designed with a recirculating ball bearing guide and an incremental linear potentiometer, this unit supports stepper or servo motors, achieves a maximum speed of 3 m/s with 50 m/s² acceleration, and maintains a repetition accuracy of ±0.04 mm at a 100% duty cycle across any mounting position. It meets IP40 protection, VDMA24364-C1-L LABS conformity, ISO 14644-1 cleanroom classifications, and reduced Cu/Zn/Ni battery production suitability. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192369
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192369.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 55.7 mm
- Working stroke
- 1000 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 50 m/s²
- Max. speed
- 3 m/s
- Repetition accuracy
- ±0.04 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.001 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 3550000 mm⁴
- 2nd moment of area Iz
- 8985000 mm⁴
- Max. driving torque
- 36.2 Nm
- Max. force Fy
- 4300 N
- Max. force Fz
- 4300 N
- Max. force Fy total axis
- 2957 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8192369. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
