Name: Festo 8192370 Toothed belt axis ELGD-TB-KF-120-1200-0H-PU2
Brand: Festo

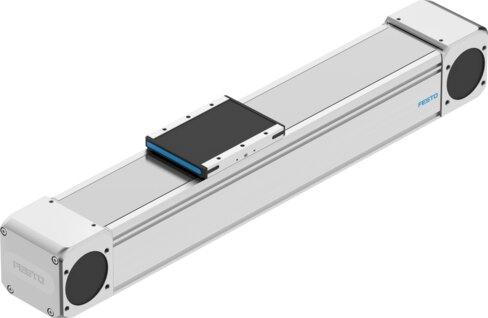

Toothed belt axis ELGD-TB-KF-120-1200-0H-PU2

The Festo 8192370 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 55.7 mm drive pinion effective diameter, and a size 120 structural design. Equipped with a recirculating ball bearing guide, this component delivers a 1200 mm working stroke with a zero stroke reserve, supporting a maximum speed of 3 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.04 mm. It operates at a 100% duty cycle and includes an incremental linear potentiometer along with position sensing for inductive sensors, accommodating either a stepper motor or servo motor in any mounting position. The assembly complies with VDMA24364-C1-L LABS conformity, meets ISO 14644-1 cleanroom standards (Class 6, or Class 4 with a vacuum insert), and is suitable for lithium-ion battery production with reduced Cu/Zn/Ni values (F1a) under an IP40 degree of protection and a storage temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8192370
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8192370.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 55.7 mm
Working stroke: 1200 mm
Size: 120
Stroke reserve: 0 mm
Toothed belt pitch: 5 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Measuring principle of linear potentiometer: Incremental
Position sensing: For inductive sensors
Max. acceleration: 50 m/s²
Max. speed: 3 m/s
Repetition accuracy: ±0.04 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.001 J
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 3550000 mm⁴
2nd moment of area Iz: 8985000 mm⁴
Max. driving torque: 36.2 Nm
Max. force Fy: 4300 N
Max. force Fz: 4300 N
Max. force Fy total axis: 2957 N
