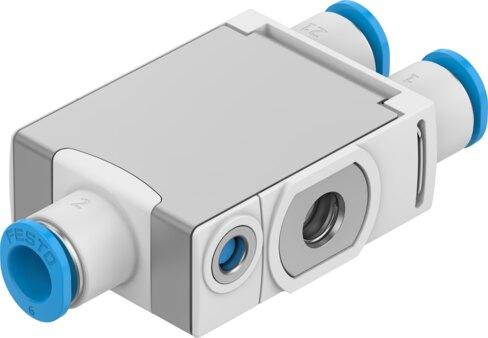

Reference imageConfirm configuration by manufacturer part number.
Festo
8193267
One-way flow control valve VFOF-CE-BAH-Q6-Q6
The Festo part number 8193267 is an industrial component featuring an exhaust air flow control non-return function with a piloted check valve and QS-6 pneumatic connections for port 1, port 2, and pilot air port 21. This device provides a standard nominal flow rate of 240 l/min in the flow control direction and 400 l/min to 460 l/min in the non-return direction, operating up to 1 MPa, 10 bar, or 145 psi with a PBT housing certified for ATEX Zone 2 and Zone 22 explosion protection. It includes manual non-detenting exhaust actuation and pneumatic actuation for the piloted non-return function across an ambient temperature range of -10 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8193267
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8193267.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Selection of additional function
- Piloted check valve
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- QS-6
- Actuation type
- Manual
- Pilot air port 21
- QS-6
- Standard nominal ow rate in ow control direction
- 240 l/min
- Standard nominal ow rate in non-return direction
- 400 l/min...460 l/min
- Operating pressure
- 1 MPa | 10 bar | 145 psi
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Pilot pressure psi
- 29 psi...145 psi
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Actuation type, piloted non-return function
- Pneumatic
- Manual exhaust function
- Non-detenting
- Operating pressure for entire temperature range
- 0.2 bar...10 bar
- Standard ow rate in ow control direction 6 -> 0 bar
- 420 l/min
- Standard ow rate actuated in non-return direction 0.6->0 MPa (6->0
- 400 l/min...460 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar unactuated
- 400 l/min...460 l/min
- Standard nominal ow rate in non-return direction actuated
- 150 l/min...230 l/min
- Standard nominal ow rate in non-return direction, unactuated
- 120 l/min...220 l/min
- Switching time off
- 9 ms
- On switching time
- 6 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
