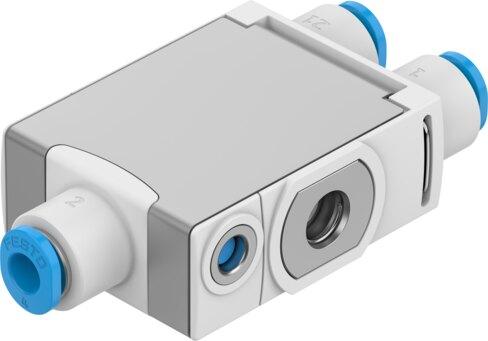

Name: Festo 8193268 One-way flow control valve VFOF-CE-BAH-Q4-Q4
Brand: Festo

One-way flow control valve VFOF-CE-BAH-Q4-Q4

The Festo part number 8193268 is an industrial component featuring an exhaust air flow control non-return function combined with a piloted check valve. Constructed with a PBT housing and equipped with QS-4 pneumatic connections for connection 1, connection 2, and pilot air port 21, it supports an operating pressure up to 1 MPa (10 bar / 145 psi) and a pilot pressure range of 2 bar to 10 bar (29 psi to 145 psi). This unit provides a standard nominal flow rate of 120 l/min in the flow control direction, 210 l/min in the non-return direction, and operates within an ambient temperature range of -10 °C to 60 °C with ATEX Zone 2 and Zone 22 explosion protection. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8193268
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8193268.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Selection of additional function: Piloted check valve
Pneumatic connection 1: QS-4
Pneumatic connection 2: QS-4
Actuation type: Manual
Pilot air port 21: QS-4
Standard nominal ow rate in ow control direction: 120 l/min
Standard nominal ow rate in non-return direction: 210 l/min
Operating pressure: 1 MPa | 10 bar | 145 psi
Pilot pressure MPa: 0.2 MPa...1 MPa
Pilot pressure: 2 bar...10 bar
Pilot pressure psi: 29 psi...145 psi
Ambient temperature: -10 °C...60 °C
Housing material: PBT
Explosion prevention and protection: Zone 2 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Actuation type, piloted non-return function: Pneumatic
Manual exhaust function: Non-detenting
Operating pressure for entire temperature range: 0.2 bar...10 bar
Standard ow rate in ow control direction 6 -> 0 bar: 200 l/min
Standard ow rate actuated in non-return direction 0.6->0 MPa (6->0: 210 l/min
Standard ow rate in non-return direction at 6 -> 0 bar unactuated: 210 l/min
Standard nominal ow rate in non-return direction actuated: 125 l/min
Standard nominal ow rate in non-return direction, unactuated: 115 l/min
Switching time oﬀ: 9 ms
On switching time: 6 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
