Festo
8193269

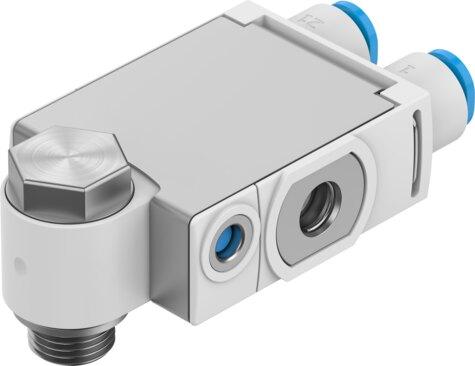

One-way flow control valve VFOF-LE-BAH-G18-Q4
The Festo 8193269 is an industrial component featuring an exhaust air flow control non-return function combined with a piloted check valve, screw-in mounting, and a PBT housing rated for ATEX Zone 2 and Zone 22 explosion protection. It includes a QS-4 pneumatic connection 1, G1/8 pneumatic connection 2, QS-4 pilot air port 21, internal hex adjusting element, and non-detenting manual exhaust function, operating across a pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar / 2.9 psi to 145 psi) with a standard nominal flow rate of 240 l/min in the flow control direction and 120 l/min to 220 l/min in the non-return direction. This unit supports any mounting position, an ambient temperature range of -10 °C to 60 °C, pneumatic actuation for the piloted non-return function, manual actuation, and a pilot pressure of 0.2 MPa to 1 MPa (2 bar to 10 bar / 29 psi to 145 psi). Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8193269
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8193269.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Selection of additional function
- Piloted check valve
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- G1/8
- Actuation type
- Manual
- Pilot air port 21
- QS-4
- Adjusting element
- Internal hex
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 240 l/min
- Standard nominal ow rate in non-return direction
- 120 l/min...220 l/min
- Operating pressure
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Pilot pressure psi
- 29 psi...145 psi
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Actuation type, piloted non-return function
- Pneumatic
- Manual exhaust function
- Non-detenting
- Rotatability
- 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 420 l/min
- Standard ow rate actuated in non-return direction 0.6->0 MPa (6->0
- 400 l/min...460 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar unactuated
- 400 l/min...460 l/min
- Standard nominal ow rate in non-return direction actuated
- 150 l/min...230 l/min
- Standard nominal ow rate in non-return direction, unactuated
- 120 l/min...220 l/min
