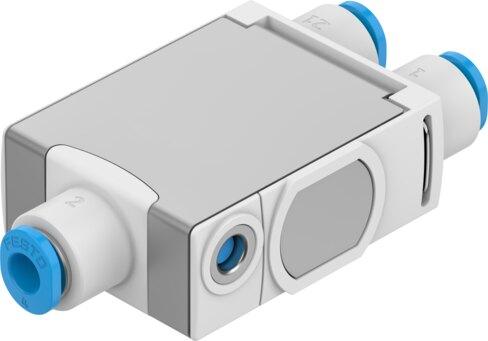

Reference imageConfirm configuration by manufacturer part number.
Festo
8193271
Check valve VBNF-CBA-Q4-Q4-F1A
The Festo 8193271 is an industrial component featuring a non-return function with pneumatic actuation and a non-detenting manual exhaust function. Constructed with a gray PBT housing and operable in any mounting position, this part supports compressed air as per ISO 8573-1:2010 [7:4:4] across a normal nominal flow rate of 120 l/min and a standard flow rate 1->2 (6-0) of 210 l/min. It functions with QS-4 pneumatic connections for connection 1, connection 2, and pilot air port 21, handling an operating pressure up to 1 MPa (10 bar) and a pilot pressure ranging from 2 bar to 10 bar (29 psi to 145 psi) within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8193271
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8193271.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Non-return function
- Selection of additional function
- Manual exhaust
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- QS-4
- Pilot air port 21
- QS-4
- Actuation type
- Manual
- Normal nominal ow rate (normalized to DIN 1343)
- 120 l/min
- Operating pressure
- 1 MPa | 10 bar
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Pilot pressure psi
- 29 psi...145 psi
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Housing colour
- Gray
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Actuation type, piloted non-return function
- Pneumatic
- Manual exhaust function
- Non-detenting
- Operating pressure for entire temperature range
- 0.2 bar...10 bar
- Standard ow rate 1->2 (6-0)
- 210 l/min
- Standard nominal ow rate 1->2 (6-5)
- 130 l/min
- Switching time off
- 9 ms
- On switching time
- 6 ms
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 22 (ATEX)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Storage temperature
- -20 °C...70 °C
- Temperature of medium
- -10 °C...60 °C
