Festo
8194567
Solenoid coil VACS-C-R3-1RAL
This Festo industrial component, part number 8194567, features electrical actuation with a 100% duty cycle and is rated for any mounting position within a medium temperature range of -20 °C to 60 °C. The unit operates at 24VDC with a nominal pick-up current of 138 mA up to 70 ms and a reduced current of 50 mA, utilizing insulation class H and enameled wire insulation class H with an IP65 degree of protection and IK06 impact energy value. It conforms to IEC 61010-1 and ISO 20401 standards, carries c UL us recognition with UL certificate MH18122, and complies with EU and UK EMC and RoHS directives while offering moderate corrosion resistance (CRC 2) and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8194567
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8194567.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1 | ISO 20401
- Impact energy value
- IK06
- Signal status display
- LED
- Duty cycle
- 100%
- Insulation class
- H
- Enameled wire insulation class
- H
- Nominal pick-up current per solenoid coil
- 138 mA up to 70 ms
- Nominal current with current reduction
- 50 mA after 70 ms
- Coil characteristics
- 24VDC:NS1,2:HS3.3
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL MH18122
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 33 g
- Max. cable length
- 30 m
- Electrical connection 1, connection type
- Plug

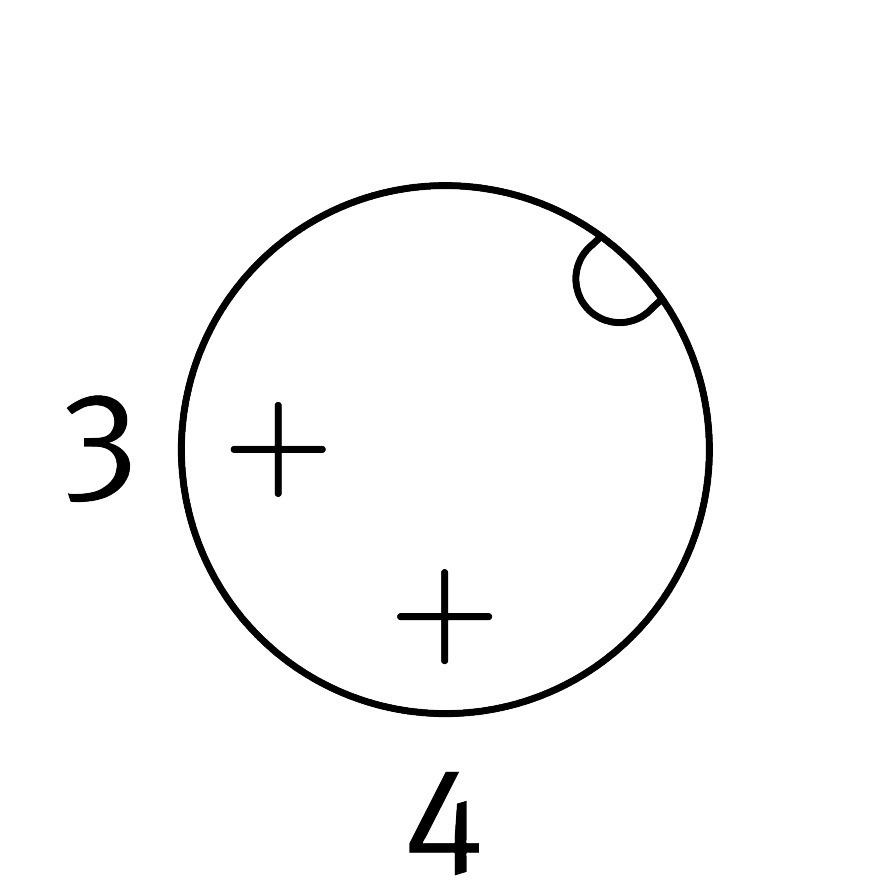

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, type of mounting
- Screw-type lock
