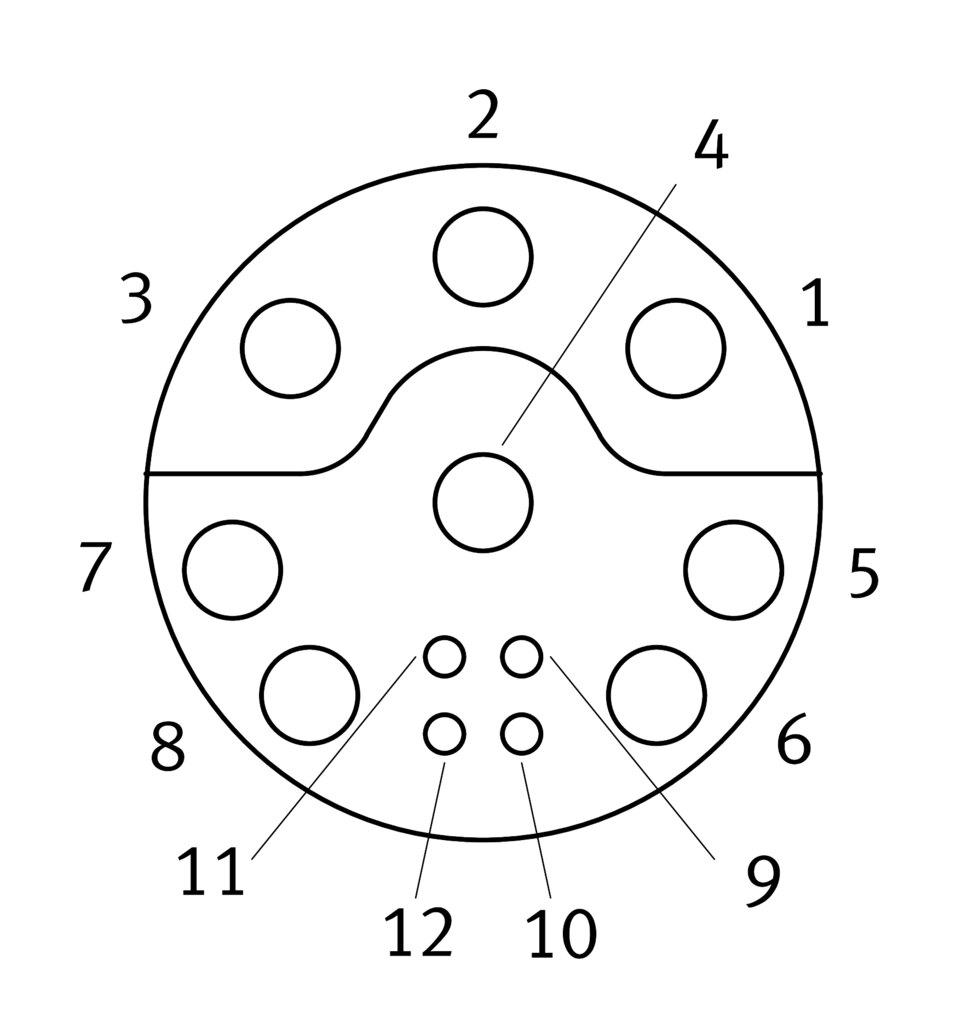

Reference imageConfirm configuration by manufacturer part number.
Festo
8195457
Motor cable NEBM-M17G12-EH-10-Q6N-LE12
This Festo industrial component, part number 8195457, weighs 1460 g and is built in accordance with the EN 61984 norm without a label holder. It features a field device side with a straight, round M17x0.75 hybrid socket connection technology having 12 occupied pins and a screw-type lock, operating within a DC voltage range of 0 V to 48 V and a 7.6 A current rating at 40° C. The control side utilizes a straight cable connection with 12 occupied pins and an open end secured via an inserted mounting type. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8195457
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8195457.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Product weight
- 1460 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M17x0.75
- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 12
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 12
- Electrical connection 2, occupied pins/wires
- 12
- Electrical connection 2, type of mounting
- Inserted
- DC operating voltage range
- 0 V...48 V
- Current rating at 40° C
- 7.6 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 10 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 42 mm
- Bending radius, exible cable installation
- 78.75 mm
- Cable diameter
- 10.5 mm
- Cable diameter tolerance
- ± 0.3 mm
