Festo
8196377

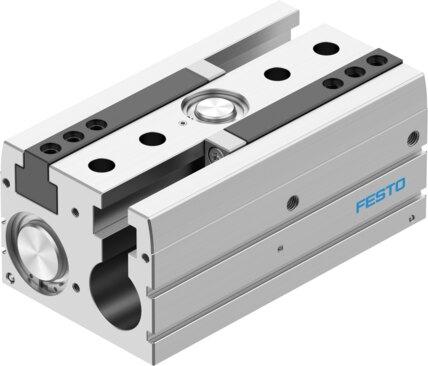

Parallel gripper HPPL-50-160-A-F1A
The Festo part number 8196377 is a double-acting pneumatic parallel gripper featuring two jaws, a 50 size, a 160 mm complete stroke, and an 80 mm stroke per gripper jaw. Operating at a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, or 29 psi to 116 psi), this structural design incorporates a double piston, guide, piston gate valve, T-shape, gear rack and pinion, heavy-duty guide, and elastic cushioning rings or pads at both ends without a fixed metal stop. Position sensing is achieved via a proximity switch, delivering a repetition accuracy of 0.03 mm, a maximum gripper jaw angular play of 0.2 degrees, and a maximum gripper jaw backlash of 0.05 mm, with minimum opening and closing times of 587 ms and 456 ms respectively at 6 bar. Metals with copper, zinc, or nickel by mass as the main constituent are excluded from use with specified exceptions, and the component supports any mounting position without gripping force backup. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196377
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196377.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Complete stroke
- 160 mm
- Stroke per gripper jaw
- 80 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Guide
- Heavy-duty guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Min. opening time at 6 bar
- 587 ms
- Min. closing time at 6 bar
- 456 ms
- Max. mass per external gripper nger
- 730 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
