Festo
8196625

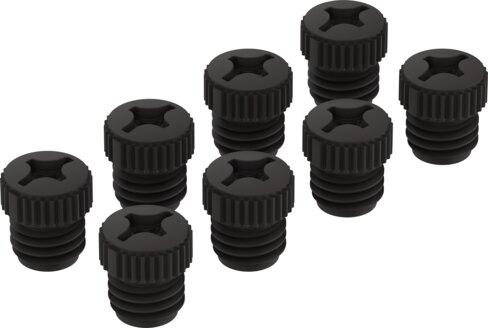

Cover cap NEAU-AK-M8
This Festo M8x1 blanking plug features a screwed mounting type with an electrical connection socket and measures 10 mm in width by 11 mm in height. Constructed from black PBT housing material with a weight of 4.8 g, the component provides an IP67 degree of protection and VDMA24364-B1/B2-L LABS conformity. It operates within an ambient temperature range of -5 °C to 60 °C, a storage temperature range of -20 °C to 70 °C, and a relative air humidity of 0 to 90% while achieving a UL94 V-0 fire test rating for any mounting position. Submit the exact part number 8196625, pack size of 8, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196625
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196625.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 10 mm
- Height
- 11 mm
- Size
- M8x1
- Design
- Blanking plug
- Type of mounting
- Screwed
- Product weight
- 4.8 g
- Pack size
- 8
- Electrical connection
- Socket
- Degree of protection
- IP67
- Ambient temperature
- -5 °C...60 °C
- Storage temperature
- -20 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Housing colour
- Black
- Housing material
- PBT
- Mounting position
- Any
- Relative air humidity
- 0 - 90%
- Fire tested
- UL94 V-0
- Color
- Black
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8196625. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
