Festo
8196628

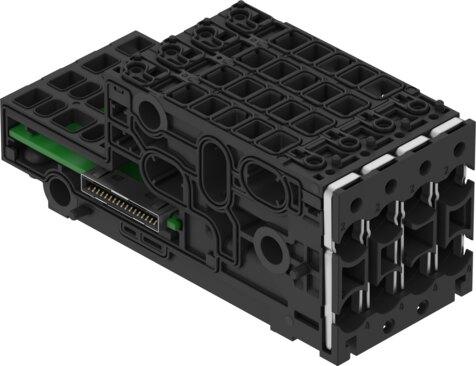

Manifold sub-base VABX-A-S-BV-AH-RV0XJAAAA
Engineered for the VTUX-A-S valve manifold, the Festo part number 8196628 is a size 1 industrial component featuring an electrical interlinking module and a width dimension of 10.55 mm. This reversible unit supports up to 4 valve positions and 8 solenoid coils, delivering a standardized nominal flow rate of 470 l/min according to ISO 8778 with vacuum suitability. Equipped with integrated LED and internal communication diagnostics, reverse polarity protection, and an internal electronic fuse per channel, it operates with a typical intrinsic current consumption of 24 mA for logic and 7 mA for load. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196628
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196628.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1
- Width dimension
- 10.55 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per channel | Diagnostics per module
- Diagnose per internal communication
- Load switch-off | Load supply undervoltage PL | Logic supply undervoltage PS | Load supply overvoltage PL | Logic supply overvoltage PS
- Max. no. of valve positions
- 4
- Integrated function
- With electrical interlinking module
- Flow direction
- Reversible
- Max. no. of solenoid coils
- 8
- Compatible with
- Valve manifold VTUX-A-S
- Suitability for vacuum
- Yes
- Nominal ow rate standardized according to ISO 8778
- 470 l/min
- Dimensions W x L x H
- 42.05 mm x 104.3 mm x 43.1 mm
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Inductive protective circuit
- Installed
- Intrinsic current consumption at nominal operating voltage for
- typically 24 mA
- Intrinsic current consumption at nominal operating voltage load
- typically 7 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Power consumption at 24 VDC
- 740 mW
- Max. number of inputs
- 8
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8196628. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
