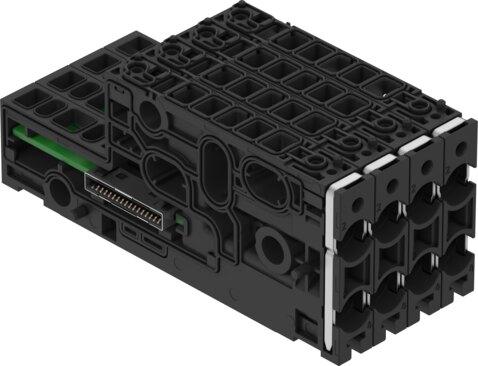

Name: Festo 8196629 Manifold sub-base VABX-A-S-BV-BH-RV0XJBBBB
Brand: Festo

Manifold sub-base VABX-A-S-BV-BH-RV0XJBBBB

The Festo part number 8196629 is an industrial component compatible with the valve manifold VTUX-A-S, featuring a size 2 build with dimensions of 50.05 mm x 104.3 mm x 43.1 mm and a width dimension of 12.55 mm. This unit includes an electrical interlinking module, a reversible flow direction, a standardized nominal flow rate of 690 l/min according to ISO 8778, and supports a maximum of 4 valve positions and 8 solenoid coils with vacuum suitability. Operational safety is supported by reverse polarity protection, internal electronic fuses per channel, LED diagnostics per channel and module, and internal communication diagnostics covering load switch-off, supply overvoltages, and undervoltages. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8196629
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8196629.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 2
Width dimension: 12.55 mm
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Reverse polarity protection: Yes
Diagnostics via LED: Diagnostics per channel | Diagnostics per module
Diagnose per internal communication: Load switch-oﬀ | Load supply undervoltage PL | Logic supply undervoltage PS | Load supply overvoltage PL | Logic supply overvoltage PS
Max. no. of valve positions: 4
Integrated function: With electrical interlinking module
Flow direction: Reversible
Max. no. of solenoid coils: 8
Compatible with: Valve manifold VTUX-A-S
Suitability for vacuum: Yes
Nominal ow rate standardized according to ISO 8778: 690 l/min
Dimensions W x L x H: 50.05 mm x 104.3 mm x 43.1 mm
Fuse protection (short circuit): Internal electronic fuse per channel
Inductive protective circuit: Installed
Intrinsic current consumption at nominal operating voltage for: typically 24 mA
Intrinsic current consumption at nominal operating voltage load: typically 7 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Power consumption at 24 VDC: 740 mW
Max. number of inputs: 8
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Power failure buﬀering: 10 ms
Electrical isolation of outputs between channel - internal communication: Yes
