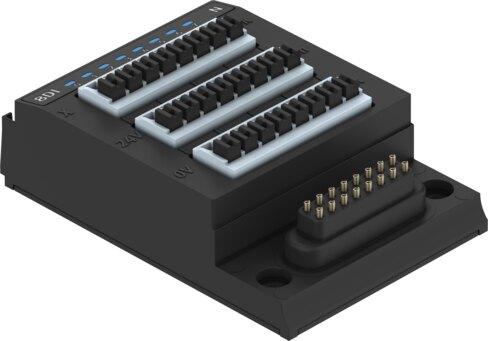

Name: Festo 8196630 Input module VAEM-XA-E-8E-N-K2
Brand: Festo

Input module VAEM-XA-E-8E-N-K2

The Festo part number 8196630 is an industrial component measuring 41.8 mm by 60.5 mm by 20.9 mm with a nominal operating voltage DC of 24 V for electronics and sensors. This unit supports a maximum of 6 modules and features 8 inputs with an input debounce time of 3 ms, a 10 ms power failure buffering, and internal electronic fuse protection for short-circuit input conditions. It incorporates built-in diagnostics for short-circuit and overload power out PL alongside an automatic return default behavior following the end of sensor supply overload. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8196630
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8196630.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 41.8 mm x 60.5 mm x 20.9 mm
Diagnose per internal communication: Short circuit/overload Power OUT PL
Max. number of modules: 6
No. of inputs: 8
Input debounce time: 3 ms
Intrinsic current consumption at nominal operating voltage for: typically 4 mA
Max. number of inputs: 8
Nominal operating voltage DC for electronics/sensors: 24 V
Power failure buﬀering: 10 ms
Switching level: Signal 1: >= 11 V
Fuse protection inputs (short circuit): Internal electronic fuse per module
Behavior after end of overload of the sensor supply: Automatic return (default)
Voltage drop of sensor supply: 1 V
Max. residual current of inputs per module: 0.2 A
Electrical isolation of inputs between channels: No
Contamination level: 2
Permissible voltage uctuations for electronics/sensors: ±25%
Permissible voltage uctuations load: ±10%
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
KC characters: KC-EMV
Max. cable length: 30 m inputs
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...70 °C
Relative air humidity: 5 - 95%
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8196630. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
