Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

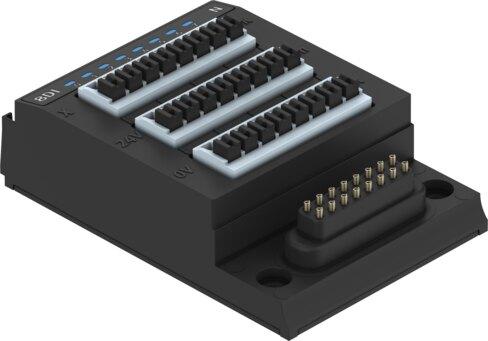

Reference imageConfirm configuration by manufacturer part number.
Festo
8196631
Input module VAEM-XA-E-8E-P-K2
The Festo part number 8196631 is an industrial component measuring 41.8 mm x 60.5 mm x 20.9 mm with a nominal operating voltage DC of 24 V for electronics and sensors. This unit features 8 inputs, an input debounce time of 3 ms, a switching level of signal 1 at >= 11 V, and internal electronic fuse protection per module for short circuit prevention with automatic return behavior after an overload of the sensor supply ends. Designed with a maximum of 6 modules, an intrinsic current consumption of typically 4 mA at nominal operating voltage, and power failure buffering of 10 ms, it carries CE marking per the EU EMC and RoHS directives alongside KC-EMV certification. Submit the exact part number, quantity, and application requirements to receive an official price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196631
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196631.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 41.8 mm x 60.5 mm x 20.9 mm
- Diagnose per internal communication
- Short circuit/overload Power OUT PL
- Max. number of modules
- 6
- No. of inputs
- 8
- Input debounce time
- 3 ms
- Intrinsic current consumption at nominal operating voltage for
- typically 4 mA
- Max. number of inputs
- 8
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Power failure buffering
- 10 ms
- Switching level
- Signal 1: >= 11 V
- Fuse protection inputs (short circuit)
- Internal electronic fuse per module
- Behavior after end of overload of the sensor supply
- Automatic return (default)
- Voltage drop of sensor supply
- 1 V
- Max. residual current of inputs per module
- 0.2 A
- Electrical isolation of inputs between channels
- No
- Contamination level
- 2
- Permissible voltage uctuations for electronics/sensors
- ±25%
- Permissible voltage uctuations load
- ±10%
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- KC characters
- KC-EMV
- Max. cable length
- 30 m inputs
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8196631. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
