Festo
8196714

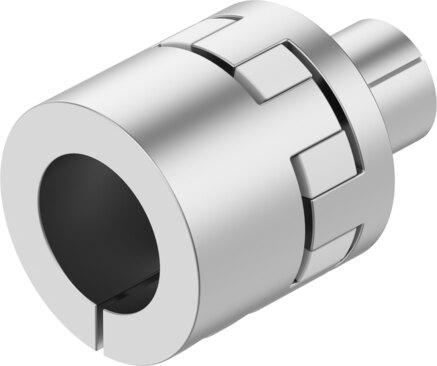

Coupling EAMD-67-65-40-32X32-U
The Festo size 67 industrial component, part number 8196714, features a 40 mm diameter holder 1, a 32 mm diameter holder 2, and a nominal length of 65 mm with a mass moment of inertia of 430 kgmm². Operating at a maximum rotational speed of 4500 rpm, this RoHS-compliant part weighs 787 g and delivers a transferable torque of 200 Nm across any mounting position. It conforms to VDMA24364-B2-L LABS (PWIS) standards and functions within an ambient and storage temperature range of -25 °C to 60 °C at a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196714
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196714.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 40 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 65 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 430 kgmm²
- Transferable torque
- 200 Nm
- Product weight
- 787 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8196714. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
