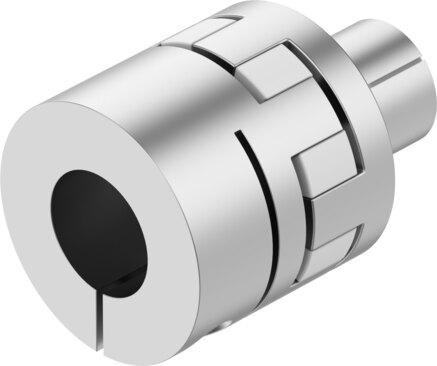

Reference imageConfirm configuration by manufacturer part number.
Festo
8196716
Coupling EAMD-67-65-32-32X32-U
Engineered by Festo, part number 8196716 is an industrial component featuring a size 67 designation with a nominal length of 65 mm and dual 32 mm holder diameters supporting any mounting position. This unit handles a maximum rotational speed of 4500 rpm, a transferable torque of 145 Nm, and a mass moment of inertia of 430 kgmm², weighing 816 g with RoHS compliance and VDMA24364-B2-L LABS conformity. It operates and stores within a temperature range of -25 °C to 60 °C and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196716
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196716.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 32 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 65 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 430 kgmm²
- Transferable torque
- 145 Nm
- Product weight
- 816 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8196716. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
