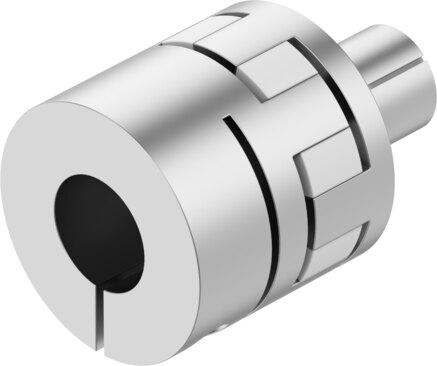

Reference imageConfirm configuration by manufacturer part number.
Festo
8196717
Coupling EAMD-56-56-25-23X27-U
This Festo industrial component, part number 8196717, features a size 56 design with a nominal length of 56 mm, a holder 1 diameter of 25 mm, and a holder 2 diameter of 23 mm. Weighing 459 g with a mass moment of inertia of 172 kgmm², the unit supports a maximum rotational speed of 5500 rpm and a transferable torque of 58 Nm in any mounting position. It complies with VDMA24364-B2-L LABS conformity and RoHS material restrictions, operating within ambient and storage temperatures of -25 °C to 60 °C and relative air humidity up to 95%. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196717
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196717.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 25 mm
- Diameter of holder 2
- 23 mm
- Size
- 56
- Nominal length
- 56 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 172 kgmm²
- Transferable torque
- 58 Nm
- Product weight
- 459 g
- Note on materials
- RoHS compliant
