Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

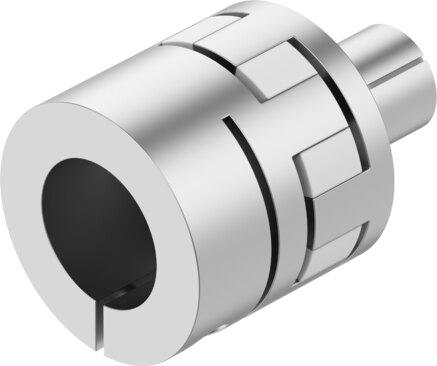

Reference imageConfirm configuration by manufacturer part number.
Festo
8196718
Coupling EAMD-56-56-32-23X27-U
The Festo industrial component, part number 8196718, features a size 56 design with a nominal length of 56 mm and holder diameters of 32 mm and 23 mm. Weighing 435 g with a mass moment of inertia of 172 kgmm², this part delivers a transferable torque of 73 Nm at a maximum rotational speed of 5500 rpm in any mounting position. It complies with RoHS material regulations and VDMA24364-B2-L LABS conformity, operating and storing within a temperature range of -25 °C to 60 °C and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8196718
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8196718.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 32 mm
- Diameter of holder 2
- 23 mm
- Size
- 56
- Nominal length
- 56 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 172 kgmm²
- Transferable torque
- 73 Nm
- Product weight
- 435 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8196718. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
