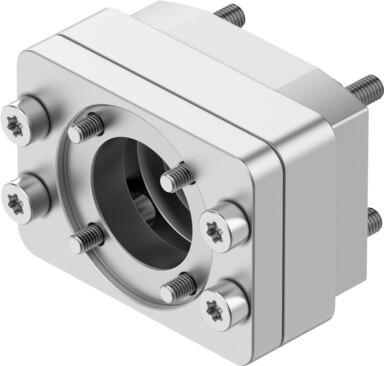

Reference imageConfirm configuration by manufacturer part number.
Festo
8197448
Axial kit EAMM-A-L38-40G-G2
The Festo industrial component, part number 8197448, features a nominal length of 32 mm, a transferable torque of 4.4 Nm, and a maximum rotational speed of 8000 rpm. This RoHS-compliant unit weighs 228 g, exhibits a mass moment of inertia of 3.2 kgmm², and incorporates an actuator interface code of L38 alongside a motor-in interface code of 40G with VDMA24364-B2-L LABS conformity. Designed with an IP40 degree of protection, it operates within an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C and relative air humidity up to 95%, and functions in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197448
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197448.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 32 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 228 g
- Interface code, actuator
- L38
- Interface code, motor in
- 40G
- Note on materials
- RoHS compliant
