Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

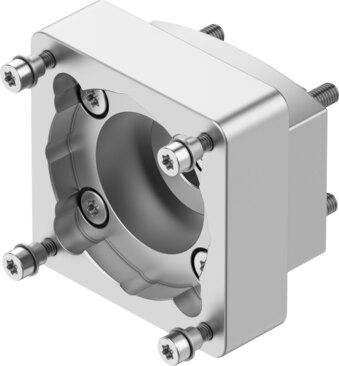

Reference imageConfirm configuration by manufacturer part number.
Festo
8197449
Axial kit EAMM-A-L38-60RA
The Festo industrial component, part number 8197449, features a nominal length of 36 mm, an actuator interface code of L38, and a motor-in interface code of 60RA with a mass moment of inertia of 3.2 kgmm². This IP40-rated assembly handles a maximum rotational speed of 8000 rpm and a transferable torque of 4.4 Nm, weighing 254 g while complying with RoHS material notes and VDMA24364-B2-L LABS conformity. It operates in ambient temperatures between -10 °C and 60 °C, supports a storage temperature range of -25 °C to 60 °C, accommodates 0 to 95% relative air humidity, and permits any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197449
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197449.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 36 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 254 g
- Interface code, actuator
- L38
- Interface code, motor in
- 60RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197449. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
