Festo
8197455

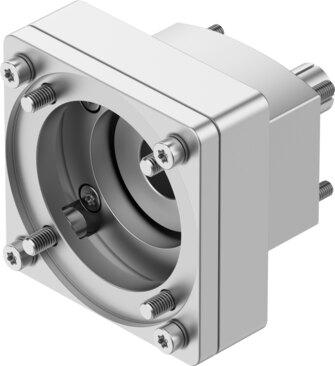

Axial kit EAMM-A-L48-80G-G2
The Festo 8197455 industrial component features a nominal length of 59 mm, a mass moment of inertia of 39 kgmm², and a transferable torque of 21 Nm with a maximum rotational speed of 6000 rpm. This IP40-rated assembly incorporates actuator interface code L48 and motor input interface code 80G, weighing 619 g with RoHS-compliant materials and VDMA24364-B2-L LABS conformity. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, relative air humidity levels between 0 and 95%, and supports any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197455
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197455.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 59 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 619 g
- Interface code, actuator
- L48
- Interface code, motor in
- 80G
- Note on materials
- RoHS compliant
