Festo
8197462

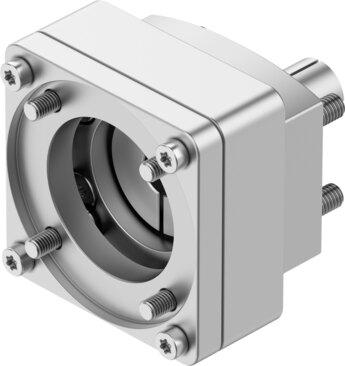

Axial kit EAMM-A-N38-60G-G2
This Festo industrial component, part number 8197462, features a nominal length of 41 mm, a product weight of 375 g, an actuator interface code of N38, and a motor-in interface code of 60G. The unit delivers a transferable torque of 16 Nm at a maximum rotational speed of 8000 rpm, alongside a mass moment of inertia of 14.5 kgmm² and VDMA24364-B2-L LABS conformity. Designed with an IP40 degree of protection and RoHS-compliant materials, it operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and a relative air humidity of 0 to 95% in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197462
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197462.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 41 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 16 Nm
- Product weight
- 375 g
- Interface code, actuator
- N38
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
