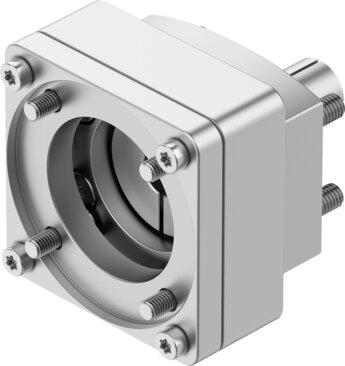

Reference imageConfirm configuration by manufacturer part number.
Festo
8197463
Axial kit EAMM-A-N38-60H-G2
The Festo 8197463 industrial component features a nominal length of 41 mm, a product weight of 374 g, and an actuator interface code of N38 with a motor-in interface code of 60H. This part delivers a transferable torque of 16 Nm at a maximum rotational speed of 8000 rpm, exhibiting a mass moment of inertia of 14.5 kgmm² and an IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C, it accommodates 0 to 95% relative air humidity in any mounting position while meeting VDMA24364-B2-L LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197463
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197463.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 41 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 16 Nm
- Product weight
- 374 g
- Interface code, actuator
- N38
- Interface code, motor in
- 60H
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197463. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
