Festo
8197471

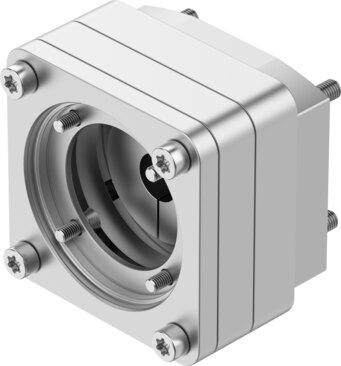

Axial kit EAMM-A-N80-80G-G2
The Festo 8197471 industrial component features a nominal length of 62.5 mm, an N80 actuator interface code, and an 80G motor input interface code with a transferable torque of 47 Nm at a maximum rotational speed of 5500 rpm. Weighing 1672 g with a mass moment of inertia of 151 kgmm², this RoHS compliant unit operates within an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C, and maintains an IP40 degree of protection across 0 to 95% relative air humidity in any mounting position while conforming to VDMA24364-B2-L LABS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197471
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197471.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 62.5 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 47 Nm
- Product weight
- 1672 g
- Interface code, actuator
- N80
- Interface code, motor in
- 80G
- Note on materials
- RoHS compliant
