Festo
8197473

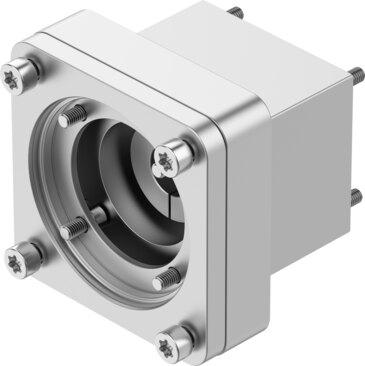

Axial kit EAMM-A-S62-80G-G3
The Festo 8197473 industrial component features a nominal length of 80 mm, a transferable torque of 21 Nm, and a maximum rotational speed of 6000 rpm with a mass moment of inertia of 34.8 kgmm². Constructed with RoHS-compliant materials and meeting VDMA24364-B2-L LABS conformity, this IP40-rated unit weighs 1440 g and operates within ambient temperatures from -10 °C to 60 °C, relative air humidity of 0 to 95%, and storage temperatures between -25 °C and 60 °C in any mounting position. It incorporates an S62 actuator interface code and an 80G motor-in interface code. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197473
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197473.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 80 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1440 g
- Interface code, actuator
- S62
- Interface code, motor in
- 80G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197473. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
