Festo
8197480

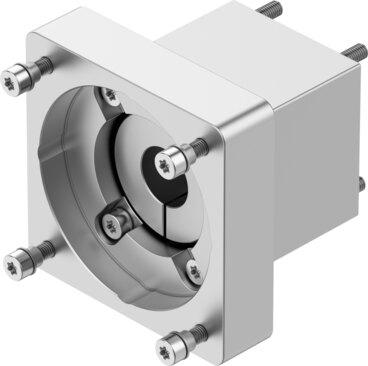

Axial kit EAMM-A-S48-80P
Engineered by Festo with the part number 8197480, this industrial component features a nominal length of 72 mm, a product weight of 590 g, and a mass moment of inertia of 34.8 kgmm². The unit accommodates any mounting position, a maximum rotational speed of 6000 rpm, and a transferable torque of 17 Nm, operating within an ambient temperature range of -10 °C to 60 °C and relative air humidity from 0 to 95%. It offers IP40 protection, VDMA24364-B2-L LABS conformity, RoHS compliant materials, an actuator interface code of S48, and a motor-in interface code of 80P | 80PA | 80RA while supporting storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197480
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197480.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 72 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 590 g
- Interface code, actuator
- S48
- Interface code, motor in
- 80P | 80PA | 80RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197480. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
