Festo
8197488

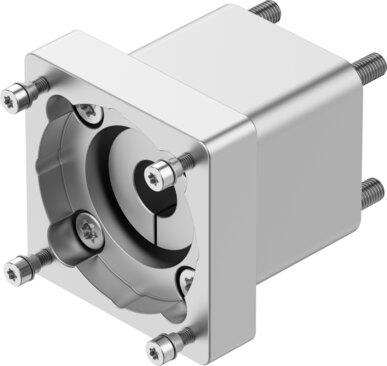

Axial kit EAMM-A-D50-80PB-G2
The Festo industrial component, part number 8197488, features a nominal length of 77.5 mm, an actuator interface code of D50, and motor-in interface codes of 80PB or 80R. This unit weighs 810 g, has a mass moment of inertia of 34.8 kgmm², and transfers a maximum torque of 21 Nm up to a rotational speed of 6000 rpm in any mounting position. Constructed with RoHS-compliant materials and adhering to VDMA24364-B2-L LABS conformity, it provides an IP40 degree of protection for storage temperatures between -25 °C and 60 °C and ambient temperatures from -10 °C to 60 °C within 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 77.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 810 g
- Interface code, actuator
- D50
- Interface code, motor in
- 80PB | 80R
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
