Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8197493

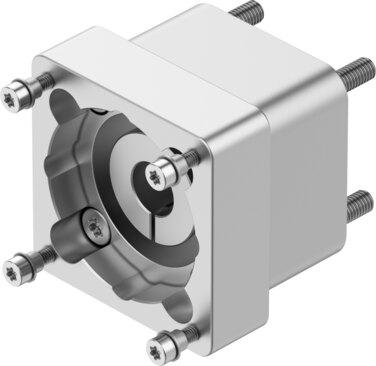

Axial kit EAMM-A-D40-60P-G2
The Festo part number 8197493 is an industrial component with a nominal length of 51 mm and a product weight of 340 g, featuring actuator interface codes D40 and D40C alongside motor input codes 60P and 60PA. This RoHS compliant assembly operates at a maximum rotational speed of 8000 rpm, delivers a transferable torque of 12.5 Nm, and maintains a mass moment of inertia of 5.87 kgmm² with VDMA24364-B2-L LABS conformity. It achieves an IP40 degree of protection, supports any mounting position, and functions within ambient temperatures from -10 °C to 60 °C, relative air humidity levels of 0 to 95 percent, and storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 51 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 340 g
- Interface code, actuator
- D40 | D40C
- Interface code, motor in
- 60P | 60PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
