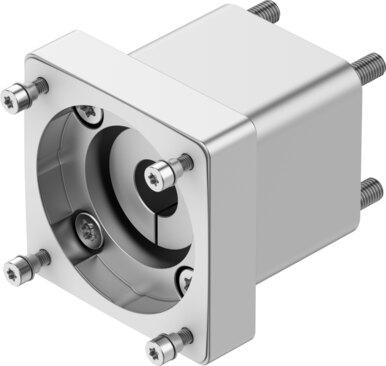

Reference imageConfirm configuration by manufacturer part number.
Festo
8197494
Axial kit EAMM-A-D50-80P-S1-G2
The Festo part number 8197494 is an industrial component featuring a nominal length of 78.5 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 810 g with RoHS-compliant materials. It supports any mounting position, a maximum rotational speed of 6000 rpm, and a transferable torque of 21 Nm, accompanied by IP65 protection and VDMA24364-B2-L LABS conformity. This unit operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and relative air humidity from 0 to 95%, utilizing a D50 actuator interface code and 80P, 80PA, or 80RA motor-in interface codes. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197494
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197494.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 78.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 810 g
- Interface code, actuator
- D50
- Interface code, motor in
- 80P | 80PA | 80RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197494. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
