Festo
8197496

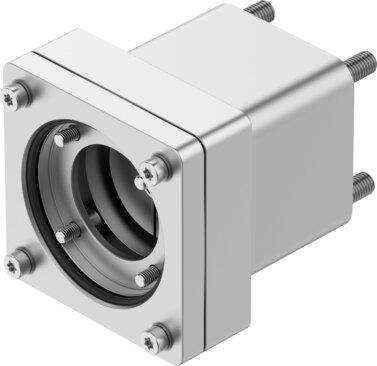

Axial kit EAMM-A-D50-60G-S1-G2
The Festo 8197496 is an industrial component featuring a nominal length of 78.5 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 950 g. Built with an IP65 degree of protection, an actuator interface code of D50, a motor-in interface code of 60G, and VDMA24364-B2-L LABS conformity, this RoHS-compliant part supports any mounting position, a transferable torque of 21 Nm, and a maximum rotational speed of 6000 rpm within storage temperatures of -25 °C to 60 °C, ambient temperatures of -10 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197496
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197496.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 78.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 950 g
- Interface code, actuator
- D50
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197496. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
