Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

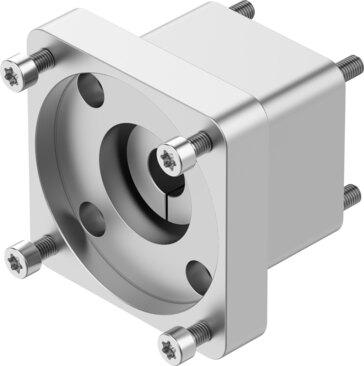

Reference imageConfirm configuration by manufacturer part number.
Festo
8197500
Axial kit EAMM-A-D60-100A-G2
This Festo industrial component features a nominal length of 77.4 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 1310 g, with a transferable torque rating of 21 Nm up to a maximum rotational speed of 6000 rpm. Designed with D60 and D60C actuator interface codes alongside a 100A motor-in interface code, the unit achieves an IP40 degree of protection and VDMA24364-B2-L LABS conformity while utilizing RoHS-compliant materials. It operates in ambient temperatures from -10 °C to 60 °C, accommodates storage temperatures between -25 °C and 60 °C, functions within a 0 to 95% relative air humidity range, and supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8197500
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8197500.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 77.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1310 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8197500. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
