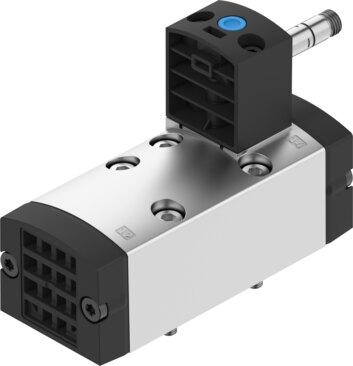

Reference imageConfirm configuration by manufacturer part number.
Festo
8198567
Solenoid valve VSVA-B-M52-AZH-D1-F8
The Festo 8198567 is a 42 mm wide industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design with a soft sealing principle. Operating at pressures from -0.9 bar to 16 bar, this electrically actuated, piloted valve delivers a standardized nominal flow rate of 1800 l/min through an ISO 5599-1 size 1 sub-base working port. It includes a pneumatic spring reset, non-detenting manual override, external pilot air supply port, and IP65 and NEMA 4 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8198567
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8198567.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Nominal ow rate standardized according to ISO 8778
- 1800 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- b-value
- 1.6
- C value
- 7.707 l/sbar
- Flow rate of pneumatic valve
- 1700 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1400 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1600 l/min
