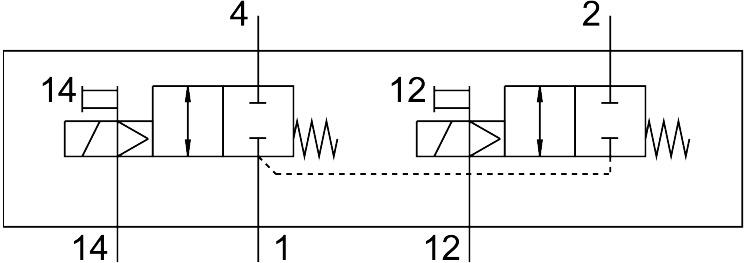

Reference imageConfirm configuration by manufacturer part number.
Festo
8198578
Solenoid valve VSVA-B-T22C-MZH-D1-F8
This Festo 8198578 industrial component features a 2x2/2 closed, monostable valve function with an electrical actuation type and a piloted control using an external pilot air supply port. Built with a piston gate valve structural design, a soft sealing principle, and a positive overlap lap, the unit delivers a standardized nominal flow rate of 1700 l/min across an operating pressure range of -0.09 MPa to 1 MPa. The assembly includes a mechanical spring reset method, a non-detenting manual override, an adjustable exhaust air function via an individual sub-base, and an ISO 5599-1 size 1 pneumatic working port compliant with ISO 5599-1 standards. Featuring an IP65 and NEMA 4 degree of protection, a nominal width of 8 mm, and a reversible flow direction, it accommodates any mounting position within its 42 mm width dimension. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8198578
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8198578.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2 closed, monostable
- Actuation type
- Electrical
- Width
- 42 mm
- Nominal ow rate standardized according to ISO 8778
- 1700 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- b-value
- 0.18
- C value
- 6.503 l/sbar
- Flow rate of pneumatic valve
- 1500 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1300 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1500 l/min
