Festo
8198607

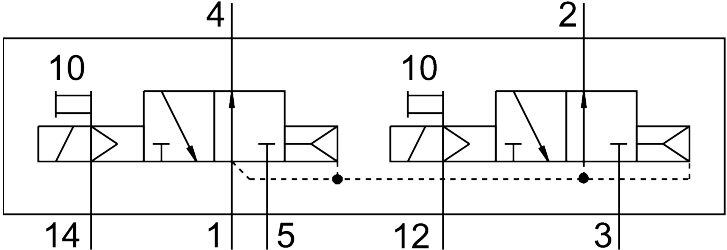

Solenoid valve VSVA-B-T32U-AZD-D2-F8
The Festo 8198607 is a 52 mm wide industrial component featuring a 2x3/2 open monostable valve function and an electrical actuation type with piloted control and external pilot air supply. Operating at a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this piston gate valve provides a standardized nominal flow rate of 2900 l/min according to ISO 8778 through an ISO 5599-1 size 2 sub-base pneumatic working port. It incorporates a soft sealing principle, positive overlap, a pneumatic spring reset method, an 11.5 mm nominal width, and adjustable exhaust air via individual sub-base with IP65 and NEMA 4 degree of protection ratings. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8198607
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8198607.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Width
- 52 mm
- Nominal ow rate standardized according to ISO 8778
- 2900 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 11.5 mm
- Width dimension
- 53 mm
- Exhaust air function
- Adjustable | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- No
- b-value
- 0.32
- C value
- 7.598 l/sbar
- Flow rate of pneumatic valve
- 2700 l/min
- Flow rate of pneumatic valve on individual sub-base
- 2300 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2200 l/min
- Max. switching frequency
- 5 Hz
