Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8199039

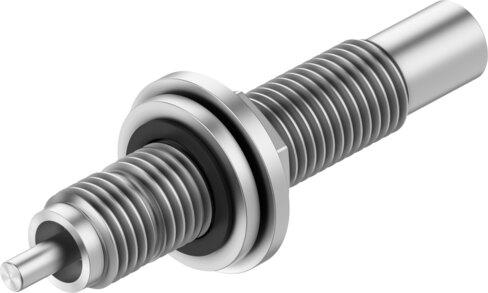

Shock absorber DYSD-Q13-5-5-Y1F-Y9
This Festo industrial component, part number 8199039, is a single-acting pushing unit featuring a size 5 design with a 5 mm stroke and self-adjusting cushioning. The unit operates within an ambient temperature range of -10 °C to 60 °C, supports a maximum impact velocity of 0.5 m/s, and delivers a maximum stop force of 180 N with 1 J of maximum energy absorption per stroke. It achieves a 0.2 s reset time at room temperature, exhibits a CRC 2 moderate corrosion stress rating, and complies with VDMA24364-B2-L LABS conformity while being suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8199039
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8199039.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 5
- Stroke
- 5 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.5 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 5 mm
- Max. stop force
- 180 N
- Max. tightening torque
- 2 Nm
- Max. energy absorption per stroke
- 1 J
- Max. energy absorption per hour
- 2400 J
- Resetting force
- 5 N
- Min. insertion force
- 18 N
- Product weight
- 12 g
- Load range
- 8 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Piston rod material
- High-alloy steel
- Nut material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8199039. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
