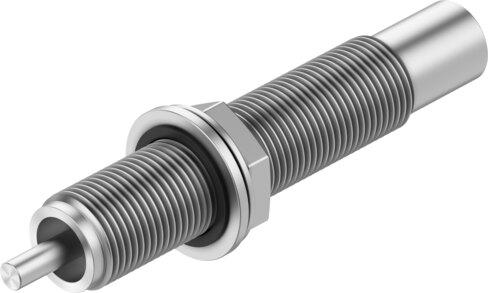

Reference imageConfirm configuration by manufacturer part number.
Festo
8199041
Shock absorber DYSD-Q13-8-8-Y1F-Y9
Engineered by Festo with a size 8 and an 8 mm stroke, this single-acting industrial component operates in a pushing mode with self-adjusting cushioning over an 8 mm cushioning length. The unit accommodates any mounting position within an ambient temperature range of -10 °C to 60 °C, delivering a maximum stop force of 420 N, a maximum impact velocity of 0.5 m/s, and a maximum energy absorption of 4.8 J per stroke. Certified for moderate corrosion stress (CRC 2) and VDMA24364-B2-L LABS conformity, it is suitable for the production of Li-ion batteries with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8199041
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8199041.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Stroke
- 8 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.5 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 8 mm
- Max. stop force
- 420 N
- Max. tightening torque
- 5 Nm
- Max. energy absorption per stroke
- 4.8 J
- Max. energy absorption per hour
- 11520 J
- Resetting force
- 9 N
- Min. insertion force
- 30 N
- Product weight
- 41.5 g
- Load range
- 38.4 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Piston rod material
- High-alloy steel
- Nut material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8199041. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
