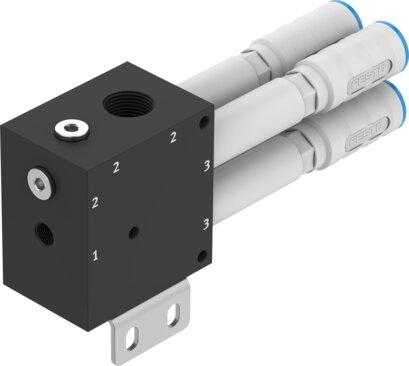

Reference imageConfirm configuration by manufacturer part number.
Festo
8199150
Vacuum generator OVPN-26-L3-PG14-G34-UA
The Festo 8199150 is a 3-stage industrial vacuum generator featuring a 2.6 mm Laval nozzle nominal width and a 60 mm width dimension with an open muffler construction type. It delivers high suction flow with a maximum suction rate of 960 l/min, a maximum vacuum of 81%, and an operating pressure range of 0.1 MPa to 0.8 MPa. Designed for compressed air media according to ISO 8573-1:2010 [7:4:4] without oil lubrication, the unit offers moderate corrosion resistance and suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8199150
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8199150.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2.6 mm
- Width dimension
- 60 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High suction ow
- Integrated function
- Muffler open
- Structural design
- Vacuum generator 3-stage
- Operating pressure for max. suction rate
- 0.8 MPa | 8 bar | 116 psi
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Operating pressure for max. vacuum
- 0.79 MPa | 7.9 bar | 114.55 psi
- Max. vacuum
- 81 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Max. suction rate with respect to atmosphere
- 960 l/min
- Air supply time at nominal operating pressure
- 0.1 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Temperature of medium
- 0 °C...60 °C
- Cleaning advice
- Soapsuds (except silencers)
- Noise level at nominal operating pressure
- 69 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 1000 g
- Type of mounting
- Direct mounting via through-hole | With mounting bracket
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8199150. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
