Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

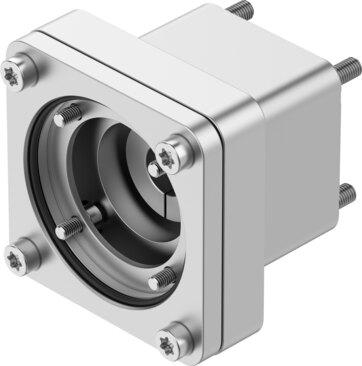

Reference imageConfirm configuration by manufacturer part number.
Festo
8199481
Axial kit EAMM-A-D60-80G-S1-G2
The Festo part number 8199481 is an industrial component featuring a nominal length of 78.4 mm, a product weight of 1500 g, and a mass moment of inertia of 34.8 kgmm². It accommodates a transferable torque of 21 Nm up to a maximum rotational speed of 6000 rpm, utilizing an actuator interface code of D60 and a motor-in interface code of 80G with an IP65 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and relative air humidity from 0 to 95%, the unit complies with RoHS material notes and VDMA24364-B2-L LABS conformity for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8199481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8199481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 78.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1500 g
- Interface code, actuator
- D60
- Interface code, motor in
- 80G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8199481. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
