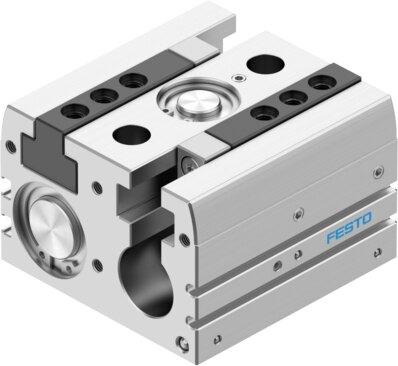

Reference imageConfirm configuration by manufacturer part number.
Festo
8200779
Parallel gripper HPPL-32-40-A-F1A
This Festo industrial component (part number 8200779) is a double-acting pneumatic parallel gripper featuring two jaws, a size 32 designation, a complete stroke of 40 mm, and a stroke per gripper jaw of 20 mm. Its structural design incorporates a double piston, guide, piston gate valve, T-shape, gear rack/pinion, and heavy-duty guide, delivering a repetition accuracy of 0.03 mm, maximum gripper jaw angular play ax, ay of 0.2 deg, and maximum gripper jaw backlash Sz of 0.05 mm. The unit operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) with elastic cushioning rings or pads at both ends without a fixed metal stop, achieving a minimum opening time of 96 ms and closing time of 70 ms at 6 bar. Position sensing is accomplished via proximity switch, and position variants exclude metals with copper, zinc, or nickel by mass as the main constituent with specific exceptions. Submit the exact part number, quantity, and application requirements to receive an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8200779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8200779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Complete stroke
- 40 mm
- Stroke per gripper jaw
- 20 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Guide
- Heavy-duty guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Min. opening time at 6 bar
- 96 ms
- Min. closing time at 6 bar
- 70 ms
- Max. mass per external gripper nger
- 330 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8200779. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
