Festo
8200780

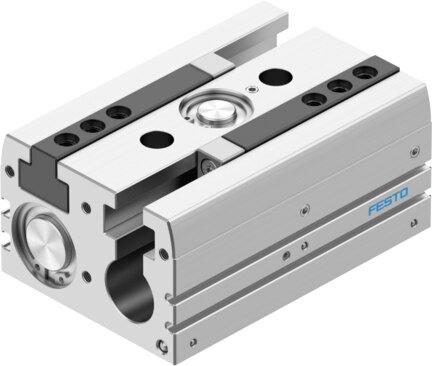

Parallel gripper HPPL-32-80-A-F1A
The Festo 8200780 is a double-acting pneumatic parallel gripper featuring two jaws with an 80 mm complete stroke, a 40 mm stroke per jaw, and a heavy-duty guide mechanism utilizing a double piston, piston gate valve, T-shape design, and gear rack/pinion. It operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, or 29 psi to 116 psi) and achieves a repetition accuracy of 0.03 mm, with a maximum angular play of 0.2 degrees and a jaw backlash of 0.05 mm. This component includes elastic cushioning rings at both ends without a fixed metal stop, permits mounting in any position, and supports position sensing via proximity switch alongside specific material restrictions excluding mass copper, zinc, and nickel. Please submit your exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8200780
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8200780.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Complete stroke
- 80 mm
- Stroke per gripper jaw
- 40 mm
- Max. gripper jaw angular play ax, ay
- 0.2 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Double piston | Guide | Piston gate valve | T-shape | Gear rack/pinion
- Guide
- Heavy-duty guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Min. opening time at 6 bar
- 172 ms
- Min. closing time at 6 bar
- 128 ms
- Max. mass per external gripper nger
- 330 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8200780. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
