Festo
8201111

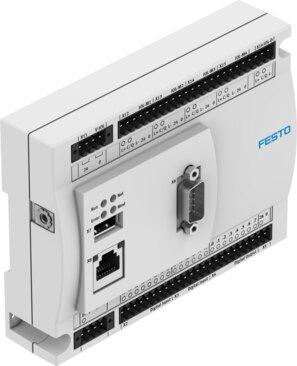

Controller CECC-LK
The Festo part number 8201111 is an industrial component powered by a dual core 500 MHz CPU and featuring 12 digital inputs with LED status indications. It operates on a nominal DC voltage of 24 V within a range of 19.2 to 30 V DC, drawing a current consumption of 120 mA and supporting a max. power supply of 6 A through a socket strip electrical connection technology with a 3.5 mm grid. Built with an IP20 degree of protection and protection class III, the 270 g unit complies with EN 61131-2 vibration and shock resistance standards while maintaining a CRC rating of 0, VDMA24364-B2-L LABS conformity, RoHS material compliance, and RCM alongside c UL us listings. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8201111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8201111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Nominal operating voltage DC
- 24 V
- Operating voltage
- 19.2 - 30 V DC
- Current consumption
- 120 mA
- Max. power supply
- 6 A
- Ambient temperature
- 0 °C...55 °C
- Storage temperature
- -25 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP20
- Protection class
- III
- Product weight
- 270 g
- Resistance to vibration
- according to EN 61131-2
- Resistance to shock
- according to EN 61131-2
- Electrical connection technology I/O
- Socket strip, grid 3.5 mm
- Status indications
- LED
- CPU data
- Dual core 500 MHz
- Digital inputs, number
- 12
- Digital inputs, switching logic
- Positive logic (PNP)
- Digital inputs, fast clock pulse inputs
- 2, each with max. 200 kHz
- Digital inputs, input signal delay
- 3 ms typ.
- Digital inputs, input voltage/current
- 24 VDC
- Digital inputs, nominal value for TRUE
- >= 15 VDC
- Digital inputs, nominal value for FALSE
- <= 5 VDC
- Digital inputs, electrical isolation
- Yes, optocoupler
- Digital inputs, status indication
- LED
- Max. cable length
- 30 m inputs
- Digital outputs, number
- 8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8201111. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
