Festo
8201112

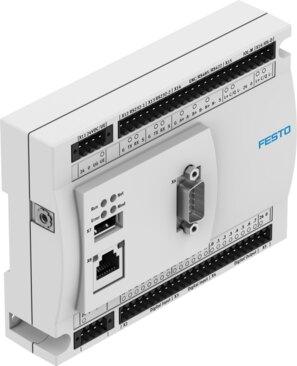

Controller CECC-S
The Festo industrial component, part number 8201112, features a dual core 500 MHz CPU, 12 digital inputs, and a nominal operating voltage of 24 V DC with a 20.4 to 30 V DC operating range. It is equipped with 3.5 mm grid socket strip I/O connections, LED status indicators, and draws 120 mA while supporting a maximum power supply of 6 A within an ambient temperature range of 0 °C to 55 °C. Certified with RCM and c UL us - Listed (OL) marks, this IP20-rated protection class III device weighs 270 g and meets EN 61131-2 standards for vibration and shock resistance under VDMA24364-B2-L LABS conformity and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8201112
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8201112.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Nominal operating voltage DC
- 24 V
- Operating voltage
- 20.4 - 30 V DC
- Current consumption
- 120 mA
- Max. power supply
- 6 A
- Ambient temperature
- 0 °C...55 °C
- Storage temperature
- -25 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP20
- Protection class
- III
- Product weight
- 270 g
- Resistance to vibration
- according to EN 61131-2
- Resistance to shock
- according to EN 61131-2
- Electrical connection technology I/O
- Socket strip, grid 3.5 mm
- Status indications
- LED
- CPU data
- Dual core 500 MHz
- Digital inputs, number
- 12
- Digital inputs, switching logic
- Positive logic (PNP)
- Digital inputs, fast clock pulse inputs
- 2, each with max. 200 kHz
- Digital inputs, input signal delay
- 3 ms typ.
- Digital inputs, input voltage/current
- 24 VDC
- Digital inputs, nominal value for TRUE
- >= 15 VDC
- Digital inputs, nominal value for FALSE
- <= 5 VDC
- Digital inputs, electrical isolation
- Yes, optocoupler
- Digital inputs, status indication
- LED
- Max. cable length
- 30 m inputs
- Digital outputs, number
- 8
