Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

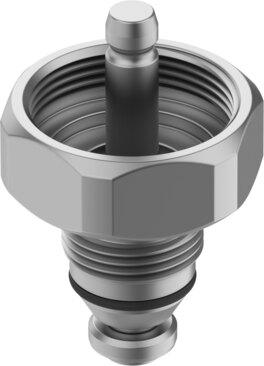

Reference imageConfirm configuration by manufacturer part number.
Festo
8201221
Cover kit VAVC-F12-SCC-13-P
Manufactured by Festo under part number 8201221, this industrial component features a nominal width DN of 13 and is certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection. Built with a high-alloy stainless steel cover, PTFE spindle seal, and PEEK seat seal, it operates within a medium temperature range of 100 °C to 230 °C and an ambient temperature range of 0 °C to 60 °C. The RoHS-compliant 358 g assembly accommodates filtered compressed air, inert gas, water, vapor, mineral oil, hydraulic fluid based on mineral oil, and neutral liquids in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8201221
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8201221.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width DN
- 13
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Medium
- Vapor | Hydraulic uid based on mineral oil | Inert gas | Mineral oil | Water | Filtered compressed air, 200 µm lter mesh | Neutral liquids
- Information on medium
- Gaseous media are only permitted with inow via valve seat.
- Temperature of medium
- 100 °C...230 °C
- Ambient temperature
- 0 °C...60 °C
- Storage temperature
- -10 °C...60 °C
- Mounting position
- Any
- Product weight
- 358 g
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Spindle seal material
- PTFE
- Seat seal material
- PEEK
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8201221. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
