Festo
8201356

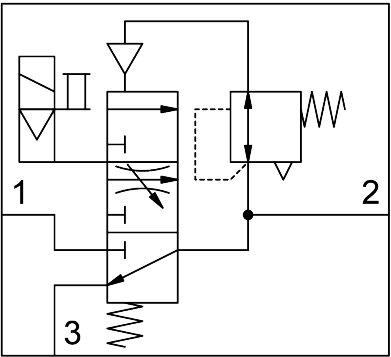

Soft start/quick exhaust valve MS4-EDE-1/4-V24-AD7-B
The Festo size 4 industrial component features a 40 mm width dimension and an electrically actuated poppet valve structural design with a 3/2-way, closed, monostable valve function. This piloted unit operates with an internal pilot air supply port, mechanical spring reset method, and a non-detenting or detenting manual override, incorporating an exhaust air function that cannot be throttled. It delivers a standard flow rate exhaust of 1600 l/min at a b-value of 0.45 and a C value of 8.52 l/sbar, operating within a pressure range of 0.3 MPa to 0.7 MPa (3 bar to 7 bar). Additional features include an integrated pressure sensor with an LCD display, a muffler, and any mounting position flexibility. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8201356
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8201356.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Width dimension
- 40 mm
- Exhaust air function
- Cannot be throttled
- Actuation type
- Electrical
- Mounting position
- Any
- Selection of additional function
- with muffler
- Series
- MS
- Manual override
- Detenting | Non-detenting
- Structural design
- Poppet valve, electrically actuated
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 3/2-way, closed, monostable
- Lap
- Negative overlap
- Pressure gauge
- with pressure sensor with LCD display
- Switching position indication
- with accessories
- Operating pressure
- 0.3 MPa...0.7 MPa | 3 bar...7 bar
- b-value
- 0.45
- C value
- 8.52 l/sbar
- Standard ow rate exhaust 6-> 0 bar
- 1600 l/min
- Normal nominal ow rate (normalized to DIN 1343)
- 2000 l/min
- On time
- 31 ms
- Coil characteristics
- 24 V DC: 2.3 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
