Festo
8201358

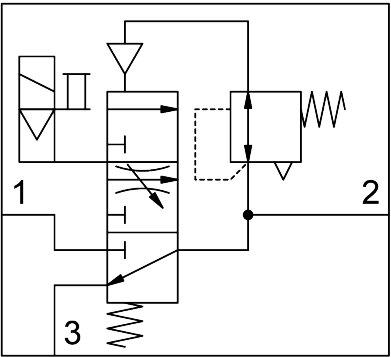

Soft start/quick exhaust valve MS6-EDE-1/2-V24-AD7-B
The Festo size 6 industrial component from the MS series is a 3/2-way, closed, monostable poppet valve featuring electrical actuation, internal pilot air supply, and a mechanical spring reset method. Measuring 62 mm in width with any mounting position, it includes a detenting or non-detenting manual override, a negative overlap lap, piloted control, and an unthrottlable exhaust air function paired with a muffler. Operating at 0.3 MPa to 0.7 MPa (3 bar to 7 bar), this part achieves a C value of 23.9 l/sbar, a b-value of 0.46, and a standard flow rate exhaust of 4000 l/min from 6 to 0 bar, while incorporating a pressure sensor with an LCD display and accessory switching position indication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8201358
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8201358.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Width dimension
- 62 mm
- Exhaust air function
- Cannot be throttled
- Actuation type
- Electrical
- Mounting position
- Any
- Selection of additional function
- with muffler
- Series
- MS
- Manual override
- Detenting | Non-detenting
- Structural design
- Poppet valve, electrically actuated
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 3/2-way, closed, monostable
- Lap
- Negative overlap
- Pressure gauge
- with pressure sensor with LCD display
- Switching position indication
- with accessories
- Operating pressure
- 0.3 MPa...0.7 MPa | 3 bar...7 bar
- b-value
- 0.46
- C value
- 23.9 l/sbar
- Standard ow rate exhaust 6-> 0 bar
- 4000 l/min
- Normal nominal ow rate (normalized to DIN 1343)
- 5000 l/min
- On time
- 31 ms
- Coil characteristics
- 24 V DC: 2.3 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
