Reference imageConfirm configuration by manufacturer part number.
Festo
8203296

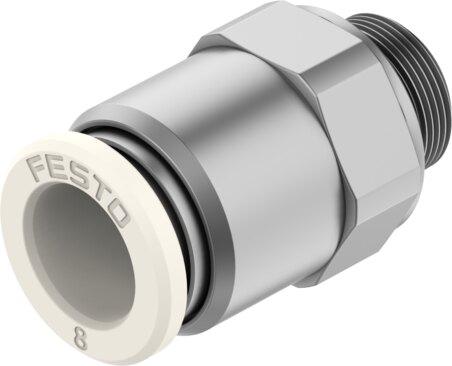

Push-in fitting NPQO-D-G18-Q8-P10
This straight-design Festo industrial component features a 6.2 mm nominal width, a 17.6 mm tubing insertion depth, and an O-ring seal on the screwed plug for universal mounting positions. Utilizing a push-pull structural design, it operates across a temperature range of 0 °C to 120 °C and an operating pressure range of -0.09 MPa to 2 MPa (-0.9 bar to 20 bar; -13.05 psi to 290 psi) with compressed air, inert gases, carbon dioxide, air, oxygen, and nitrogen. The part maintains moderate corrosion stress resistance (CRC 2) and VDMA24364 Zone III LABS conformity, with a nominal tightening torque of 5 Nm (±10% tolerance) up to a maximum of 6 Nm. Pack size is 10. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8203296
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8203296.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 6.2 mm
- Tubing insertion depth
- 17.6 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.09 MPa...2 MPa | -0.9 bar...20 bar | -13.05 psi...290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...120 °C
- Ambient temperature
- 0 °C...120 °C
- Biocompatibility according to standard
- ISO 18562
- Oxygen suitability according to standard
- ASTM G 93 | ISO 15001
- Impurity level, hydrocarbons maximum
- 550 MGM
- Max. tightening torque
- 6 Nm
- Nominal tightening torque
- 5 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 12.35 g
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature Fahrenheit
- 32 °F...248 °F
- Releasing ring color
- White
- Material of screwed plug
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8203296. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
