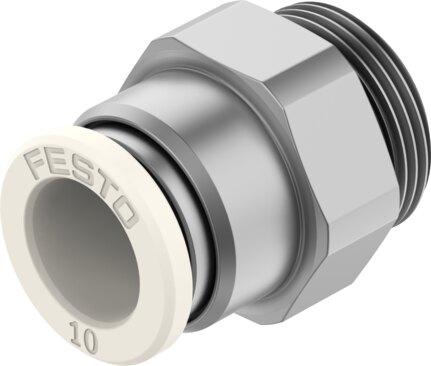

Name: Festo 8203300 Push-in fitting NPQO-D-G38-Q10-P5
Brand: Festo

Push-in fitting NPQO-D-G38-Q10-P5

This Festo industrial component, part number 8203300, features a straight design with an 8.3 mm nominal width and a 20.1 mm tubing insertion depth utilizing a push-pull structural principle and an O-ring seal on the screwed plug. It operates across an ambient and medium temperature range of 0 °C to 120 °C at pressures from -0.09 MPa to 2 MPa (-0.9 bar to 20 bar / -13.05 psi to 290 psi) with compressed air, inert gases, carbon dioxide, air, oxygen, and nitrogen. The part exhibits moderate corrosion resistance (CRC 2), VDMA24364 Zone III LABS conformity, ISO 18562 biocompatibility, and oxygen suitability according to ASTM G 93 and ISO 15001, with a maximum tightening torque of 10 Nm and a nominal tightening torque of 9 Nm within a ±10% tolerance. Available in a pack size of 5, this component is specified for use in the food industry per supplementary material information and features a maximum hydrocarbon impurity level of 550 MGM. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8203300
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8203300.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 8.3 mm
Tubing insertion depth: 20.1 mm
Type of seal on screwed plug: O-ring
Mounting position: Any
Design: Straight design
Pack size: 5
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.09 MPa...2 MPa | -0.9 bar...20 bar | -13.05 psi...290 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Carbon dioxide | Air | Oxygen | Nitrogen
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Temperature of medium: 0 °C...120 °C
Ambient temperature: 0 °C...120 °C
Biocompatibility according to standard: ISO 18562
Oxygen suitability according to standard: ASTM G 93 | ISO 15001
Impurity level, hydrocarbons maximum: 550 MGM
Max. tightening torque: 10 Nm
Nominal tightening torque: 9 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 24.31 g
Pneumatic connection 1: External thread G3/8
Pneumatic connection 2: for pneumatic tubing outside diameter 10 mm
Ambient temperature Fahrenheit: 32 °F...248 °F
Releasing ring color: White
Material of screwed plug: high-alloy stainless steel
